Powfrax ® HT1000 Series 800-1000°C
High-Temperature Dust Removal Ceramic Fiber Filter
Application: Ultra-low dust purification and acidic component removal for high-temperature flue gas from industrial furnaces at 800-1000℃.
Performance: Dust removal efficiency ≥ 99% (typical particulate emission concentration < 5 mg/Nm3, minimum can be < 1 mg/Nm3).
Temperature: HT1000 High-Temperature Series: 800-1000°C.
Features: High porosity (>85%), high strength, low resistance (<260pa per meter per minute), ultra-long service life. Fully replaces electrostatic precipitators and fabric filters.
Warranty: 5 years, with a service life of up to 8-10 years under specific conditions.
- 1. Bag Filter: Traditional filter bags (such as PTFE fiber) can only withstand temperatures up to 300°C, and overheating can cause "burned bags" or "clogged bags," requiring additional cooling systems, which leads to wasted thermal energy.
- 2. Electrostatic Precipitator: The upper operating temperature limit is approximately 370°C, and overheating can cause changes in dust properties (such as increased viscosity and resistivity jumps), reducing efficiency; prolonged high temperatures also lead to plastic deformation of components and insulation failure.
- 3. Cyclone Separator: Although it can withstand temperatures of 800-900°C, its collection efficiency for fine particles below 10μm (such as PM2.5) is less than 50%, failing to meet stringent emission standards.
- 4. Filter bags have a significantly reduced lifespan when subjected to erosion from high-temperature hard particles (such as metallurgical iron oxide).
- 5. Wet dust removal (such as venturi tubes) consumes a large amount of water, produces secondary pollution (wastewater/sludge), and cannot recover waste heat from high-temperature flue gas.
- 6. Metal sintering mesh dust removal requires a pulse blowback system, which has a complex structure and is prone to sintering blockage at high temperatures
The Powfrax HT1000 high-temperature dust removal ceramic fiber filter tube can maintain ultra-high reliability and dust removal efficiency even under working conditions of 800-1000 degrees. Thanks to its ultra-high porosity, air to cloth ratio, and ultra small nanoscale pore size, it is possible to achieve 99% of industrial dust and particulate matter, including PM10, PM2.5, and PM1. The ceramic filter tube surface forms a unique adsorbent filter cake, which can simultaneously remove over 95% of acidic components in flue gas. The typical emission concentration of industrial dust and particulate matter in flue gas treatment projects using ceramic filter tubes is less than 5mg/Nm3, and can even reach<1mg/NM3. Its normal service life exceeds 5 years, and under specific working conditions, it can even reach 8-10 years.
With the integration of ceramic technology, dust removal, denitrification, desulfurization, reduction of ammonia escape, removal of dioxins and other functions can be achieved simultaneously in the same system, greatly reducing the system's footprint and annual environmental protection costs.
he HT1000 high-temperature dust removal ceramic fiber filter is developed based on the improvement of the ceramic fiber filter process.
For its raw material characteristics and process flow, please refer to Powfrax® ceramic fiber filter
High-temperature dust removal characteristics
Can adapt to 800-1000 degree high-temperature conditions
On the basis of ordinary ceramic fiber filter tubes, by adjusting the raw material ratio and improving the process, the HT1000 series ceramic fiber filter tubes still have up to 99% dust removal and filtration characteristics under high temperature conditions of 800-1000 degrees.

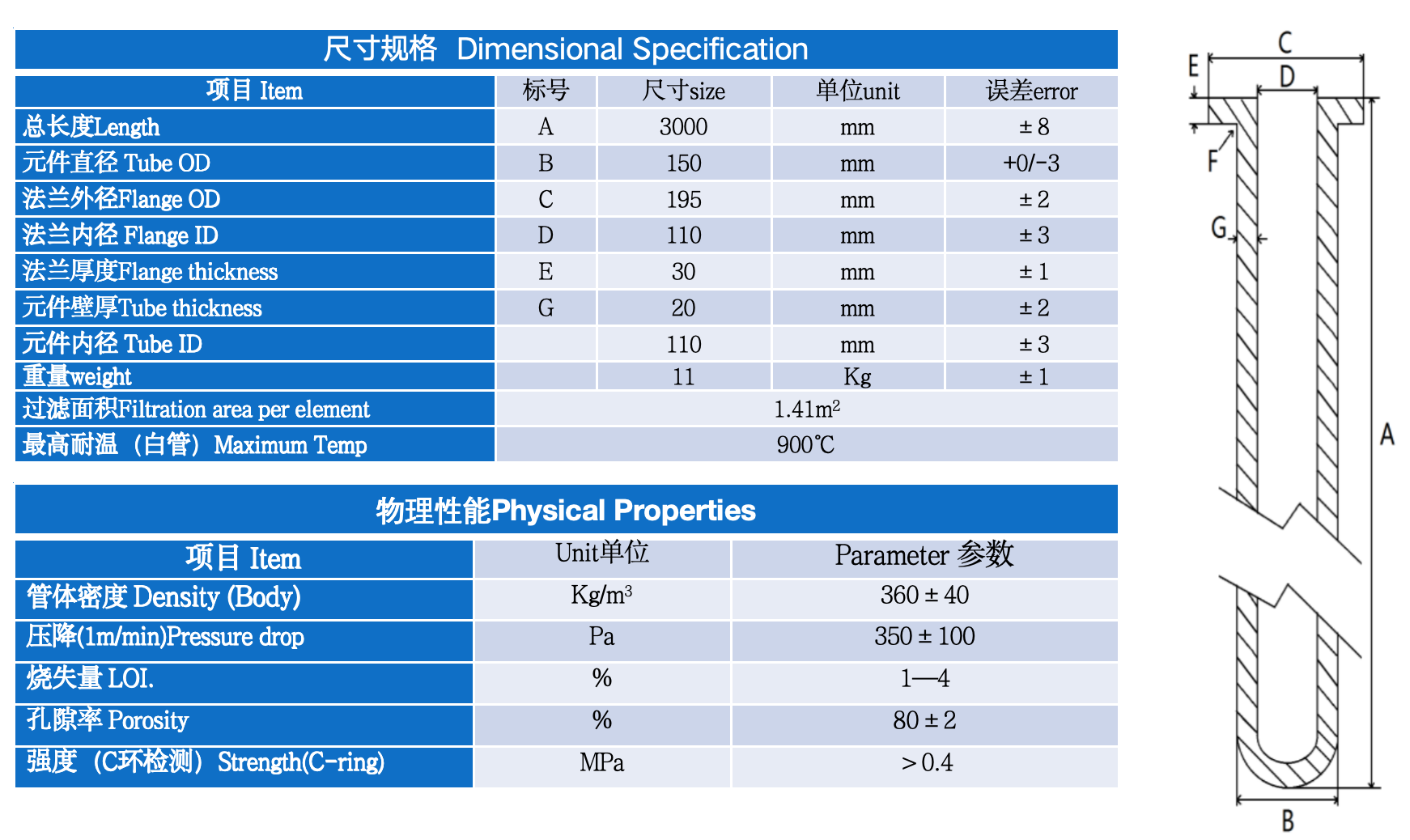

Ceramic Fiber Filter Parameter
Our customers
Since 2017, we have implemented over 50 glass furnace ceramic integrated flue gas purification projects for companies such as Wuliangye in Yibin, Shandong Pharmaceutical Glass, Sichuan University of Science and Technology, Anhui Shengshi, Shandong Luzhong, Shandong Jingyao Glass, and Luzhou Huasheng. Among these, the "Luzhou Liquor Industry" three-line air glass melting furnace environmental protection project is the first third-party operation project in China for daily glass furnace air pollution control adopting an "investment + operation" model. The "Sichuan University of Science and Technology" full-oxygen glass melting furnace is the first environmental protection project in China to use ceramic filter tubes + SCR denitrification technology for full-oxygen glass melting furnaces.
